Mizuho OSI 7803 Trios Spinal Surgical Table System w/ Accessories and Cart Manufactured in 2022

Mizuho OSI

The Mizuho OSI Trios Surgical Table System is an advanced, modular operating table platform tailored for spine, imaging, and orthopedic trauma procedures, renowned for its precision control, imaging compatibility, and durability. Complete photos and list of components to be added shortly

• Date of Manufacture: 2022
• Standard Components: Dual towers, spine frame, ProneView® helmet with mirror platform, faceplate, Tempur-Pedic® chest pad and plate, leg boards and slings, cervical traction vector, buttocks and safety straps
• Overall Length:
• Warranty: 90 Days

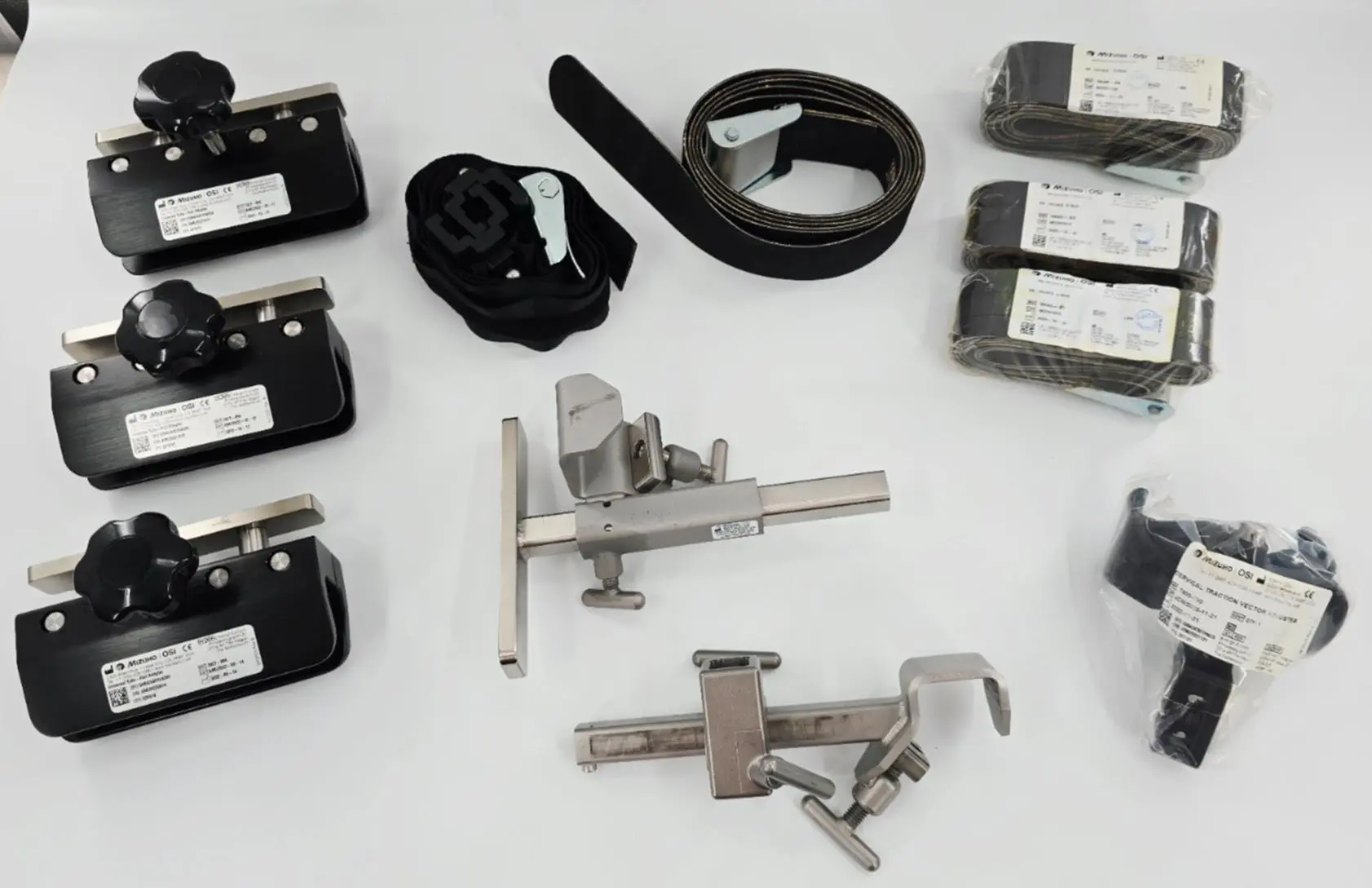

Total List of Included Accessories & Components:

(4) Adjustable Table Mount
(3) 7927-959 Clamps
(2) Rail Stock Adapter
(1) M28562 Prone View Positioner Mask
(1) M28720 Proneview Cradle
(2) 5840-44 Table Strap
(2) 5840-43 Table Strap
(1) 7803-790 Cervical Traction Vector Adjuster
(1) 431B ProFX Patient Strap
(2) 5356 Arm Board
(1) A-70800 Allen Wilson Frame
(1) 5840-580 Chest Support Section(2) 5579-60 Articulating Arm Board Assy.
(2) 5840-24 Support Section Assy.
(1) 7803-574 Spinal Surgery Table Assy.
(1) 7803-349 Image Table Top Assy.
(1) 7803-500 Cart Assy. (w/ Cover)
(1) 7803 Trios Table Base
(1) DVD Owners Manual

Exceptional Versatility & ControlExperience a new era in OR efficiency with the Mizuho OSI Trios Surgical Table System a modular powerhouse engineered for spinal, imaging, and orthopedic trauma procedures. Its intuitive IntelliPendant® controls, backed by powered floor locks and a streamlined 180° rotation mechanism, ensure seamless positioning with minimal setup time. Carbon-fiber construction delivers clear imaging access and supports even the heaviest cases—up to 650 lb—without compromising maneuverability or precision.

Tailored for Complex Cases
With interchangeable table tops—including the open-frame Spinal Surgery Top, fully radiolucent Imaging Top, and robust Orthopedic Trauma Top—Trios adapts fluidly to the surgical workflow. Whether you're performing anterior/posterior fusions, kyphoplasties, vascular imaging, or fracture fixations, the system empowers a broad range of procedures. Comfort and patient safety remain paramount thanks to Tempur-Pedic® padding and the ACP’s pressure-controlled support, designed to optimize outcomes for every patient.

Confidence You Can Build On
Trios takes precision and reliability beyond the table—its patented features of locking mounting interfaces and customizable component placement reduce human error and accelerate case turnover. Clinicians can rely on two programmed memory positions to recreate exact configurations in seconds, streamlining setup for repeat procedures. With a one-year warranty, robust build, and adaptable accessories (like neck or leg support modules), Trios is the foundation of surgical excellence, delivering comfort, control, and confidence in every case.

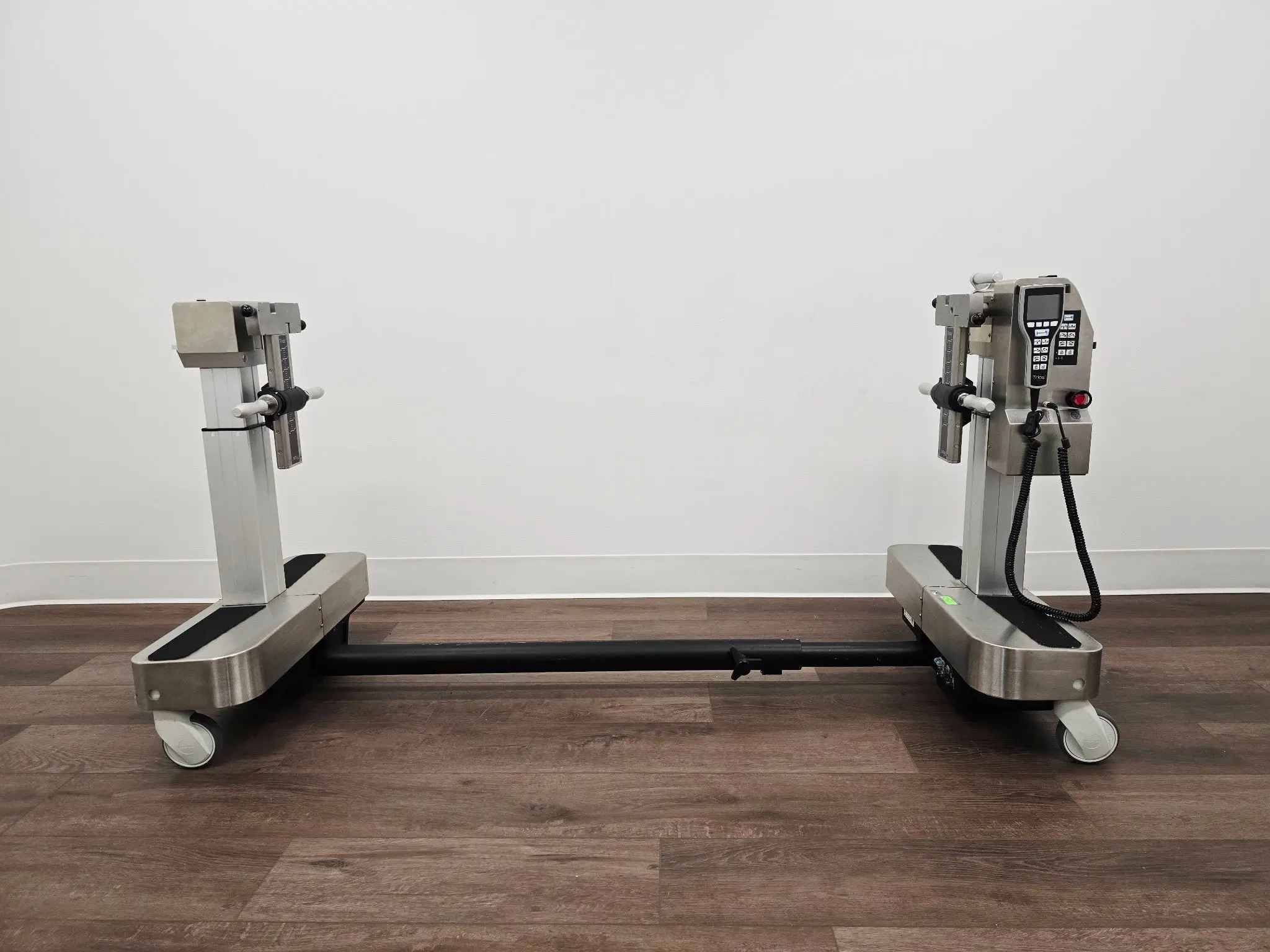

Table Base (Part #7803):
• Height adjustable (crossbar to floor): 33”–50.7” (83.8–128.8 cm)
• Trendelenburg/Reverse Trendelenburg tilt: ±10°
• Lateral (roll) tilt: ±25°
• Base dimensions: length 110” (279 cm), retracted length 68” (173 cm), width 32” (81 cm)

Table Tops:
• Spinal Surgery Top (Part #7943): 84" (213 cm) long × 17" (43 cm) wide, load capacity up to 650 lb (295 kg)
• Radiolucent Imaging Top (Part #7927): Same dimensions, optimized with a radiolucent carbon-fiber surface, supports 650 lb (295 kg)
• Orthopedic Trauma Top (Part #7855): 84" × 21.5" (55 cm), supports up to 500 lb (227 kg)

Performance & Control Features:
• Carbon-fiber construction ensures full radiolucency for unobstructed C arm and O arm imaging
• Streamlined 180° patient rotation with two-stage locking and indicator lights
• Powered floor locks for secure positioning

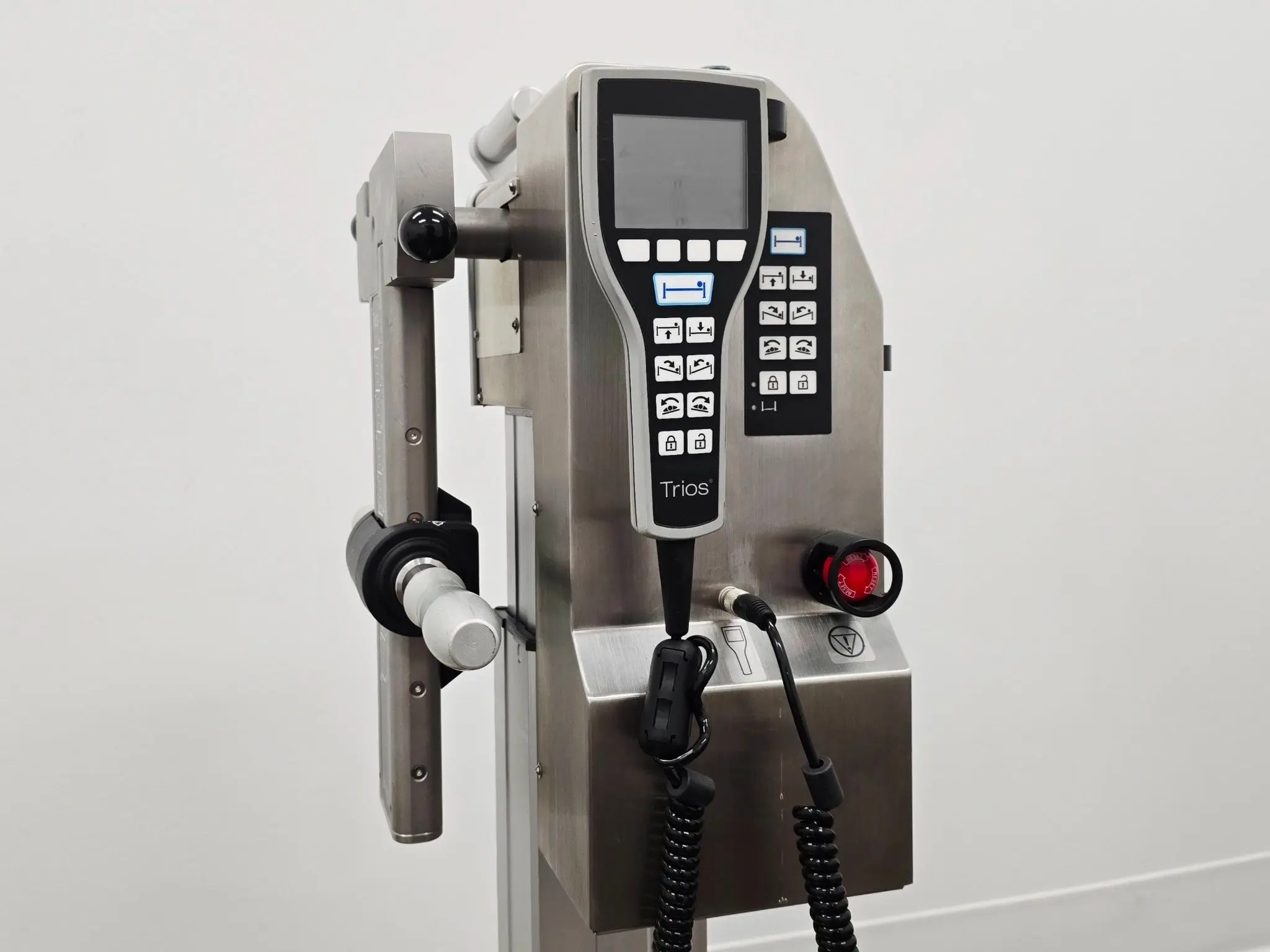

• IntelliPendant® — smart hand-held control with two memory presets and an auxiliary control panel for ease of operation
• Tempur-Pedic® medical padding across patient surfaces for enhanced comfort and pressure distribution, with the Advanced Control Pad (ACP) system further stimulating pelvic/thigh pressure points during prone procedures

Condition: Reconditioned
